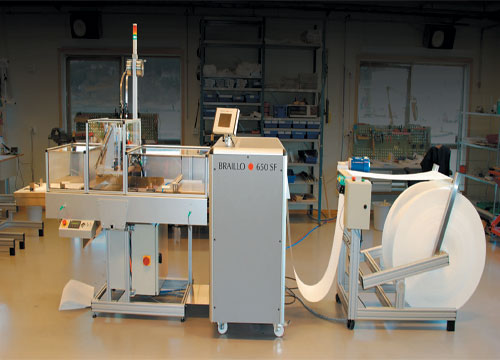

Braillo 650SF



  • Rugged construction for large volume production of braille.
  • Built-in Paper Cutter .
  • Uses standard paper rolls up to 1 meter in diameter.
  • Modular design, easy to service.
  • Stack sheets, adds a cover, then staples and folds to make a finished book.
  • 2 years warranty on parts.
  • Prints simultaneously on both sides of paper.
  • Adjustable speed between 400 and 650 characters per sec. continuous printing.
  • High braille quality. Each document is an original.
  • The printing system is based on Braillo 400 S with more than 15 years of experience.

    Technical Specifications Braillo 650SF

    Format:

    Line length: 31 - 44 characters
    Sheet length: Max 330 mm (13 inches)
    Sheet width: 4 page, min 417 mm, max 585 mm (16,4 to 23 inch)
    Page 1: Up / Down
    Printing Mode: Single / Interpoint
    Margins: Inner/Outer 12,7 - 50,8 mm (0,5 - 2 inches)
    Page Length: Max 30 lines per page
    Braille cell: Standard medium 6 dot
    Line spacing: Fixed 5 mm (0,2 inches)
    Paper Weight: 120 - 180 g/m², Recommended 150 g/m²


    Printing Speed: 400 to 650 characters per second, no of pages per hour is dependent on page format.

    Electrical:
    Voltage: Single phase 230V (+/- 10 %), 50/60Hz
    Current: Approx. 8.5 A max
    Fuse Printer: 10 A
    Power: Approx. 2000 W max


    Communication with the computer:
    USB
    Ethernet
    Serial on RS 232 C (9 pin D-sub male)


    Environment:
    Temperatures: 15 - 30°C (60 - 86°F)
    Rel. Humidity: 40 - 60%


    Measurements:
    Height: 1500 mm
    Width: 1027 mm
    Length: 4060 mm (+ approx. 2000 mm for paper roll loading and book collecting)
    Weight: 570 kilos


    The manufacturer reserves the right to change the specifications without further notice.
